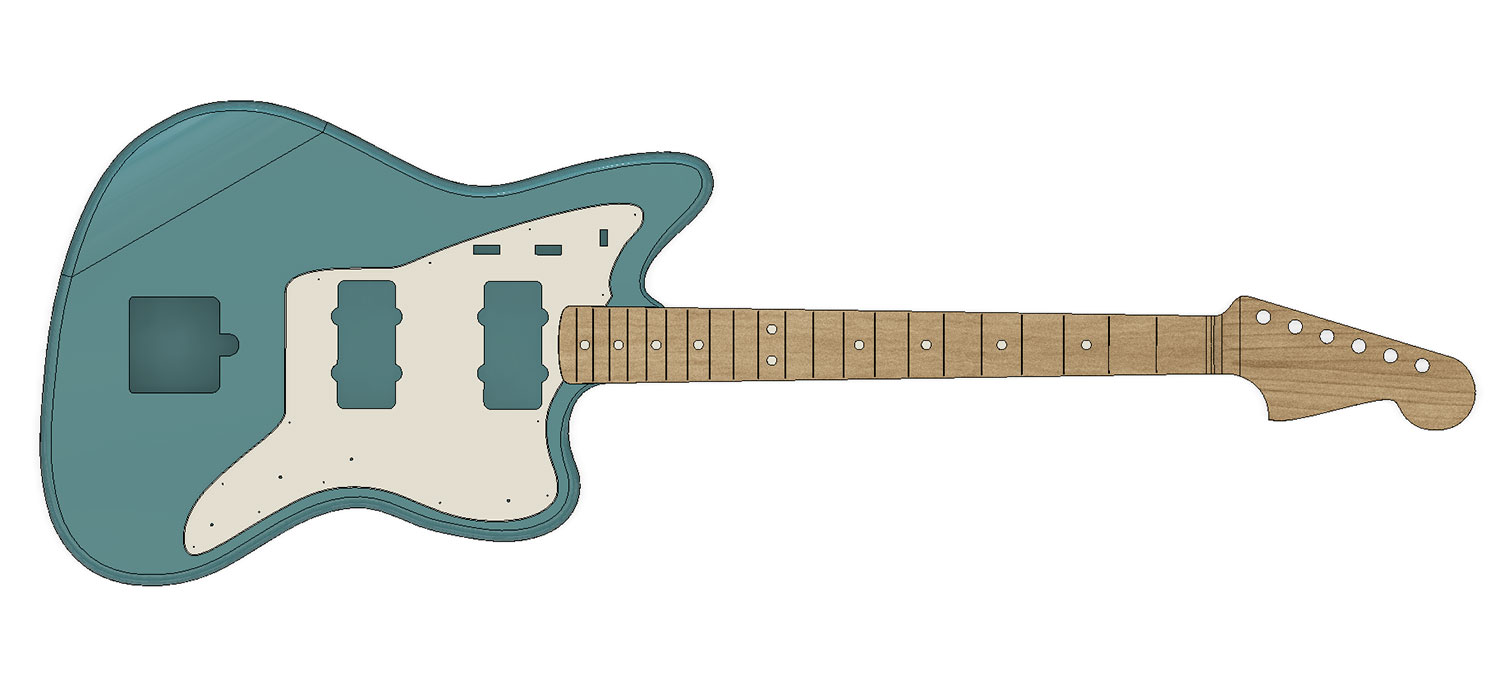

CAD Guitar Model – Fender Jazzmaster

$50.00

Designed specifically for 3-axis CNC machining. Models come in assembly files complete with all standard individual parts & listed variable parts. Ready for CAM toolpaths.

Specifications:

  • 25.5″ scale
  • 21 frets (StewMac Medium/Higher – .062″ tang/slot depth)
  • 9.5″ radius fretboard
  • 0° neck pitch (suitable for hard-tail bridges)
  • 0° headstock pitch
  • C neck profile shape (Fender 60’s dimensions)

See product notes below for further information!

SKU: MDL-013 Category:
Share:

Description

Accurate Guitar Model for CNC

Based on a 60’s Fender Jazzmaster

Features

  • Properly labelled & organized work
  • Faithful, accurate designs
  • 2D sketches included (F3D file)
  • Suitable formats for CNC (F3D, STEP, IGES)
  • Suitable mesh format for 3D printing (STL)

Available Filetypes

  • F3D (Fusion 360 native)
  • STEP (vendor neutral)
  • IGES (vendor neutral)
  • STL (vendor neutral)
Model Notes:

The following drill dimensions are used:

  • Tuning machines: 0.404″ / 10.26mm Ø | Pickgaurd Screws: 1mm Ø (pilots) | Pickgaurd Controls: 2mm Ø (pilots)



This model does not include the following (allowing for user preference / variable hardware):

  • CAM toolpaths
  • Truss rod slot

* Neck pocket offset is .005″.

Download the DXF / PDF / Vector templates here!

Additional information

Scale

25.5" / 647.7mm

Frets

21

Strings

6

Body Depth

1.625" / 41.28mm

Joint

Bolt-On

Radius

9.5" / 241.3mm

Neck Pitch

0°

Headstock Pitch

0°

Tuning Machine Holes

0.404" / 10.26mm

Headstock Depth

0.54" / 13.72mm
