CAD Guitar Model – Ibanez AM75

$50.00

Designed specifically for 3-axis CNC machining. Models come in assembly files complete with all standard individual parts & listed variable parts. Ready for CAM toolpaths.

Specifications:

  • 24.75″ scale
  • 24 frets (StewMac Medium/Higher – .062″ tang/slot depth)
  • 12″ radius fretboard
  • 3.15° neck pitch (suitable for hard-tail bridges)
  • 13° headstock pitch
  • C neck profile shape

See product notes below for further information!

SKU: MDL-014 Category:
Share:

Description

Accurate Guitar Model for CNC

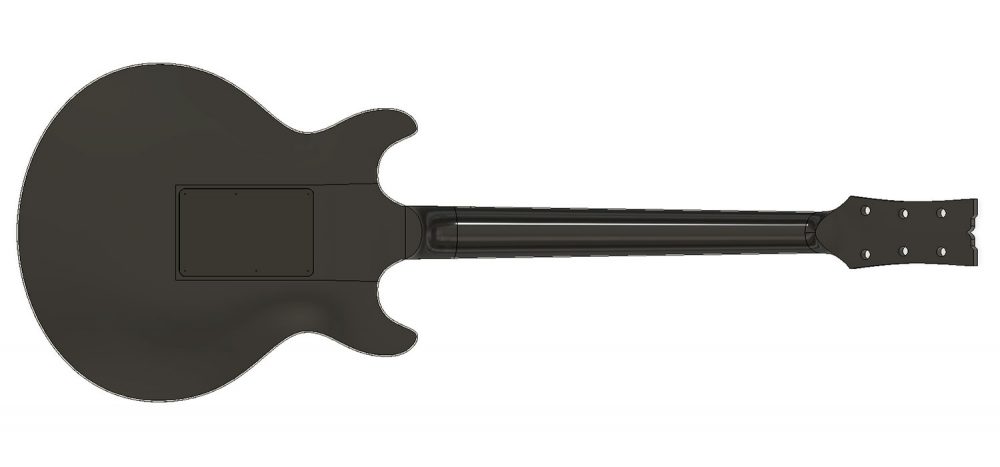

Based on a 1985 Ibanez AM75 model

Features

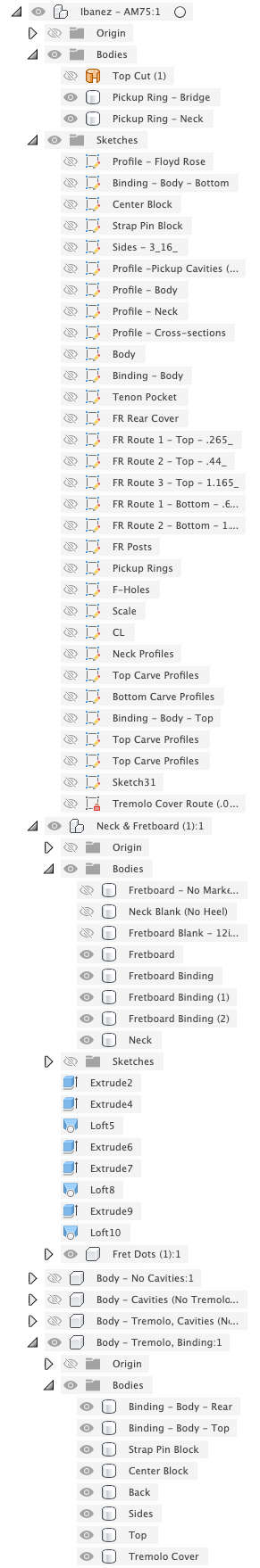

  • Properly labelled & organized work
  • Faithful, accurate designs
  • 2D sketches included (F3D file)
  • Suitable formats for CNC (F3D, STEP, IGES)

Available Filetypes

  • F3D (Fusion 360 native)
  • STEP (vendor neutral)
  • IGES (vendor neutral)
Model Notes:

The following drill dimensions are used:

  • Tuning machines: 0.394″ / 10mm Ø | Tremolo Cover: 1mm Ø (pilots)



This model does not include the following (allowing for user preference / variable hardware):

  • CAM toolpaths
  • Truss rod slot

* Neck pocket offset is .005″.

Download the DXF / PDF / Vector templates here!

Additional information

Scale

24.75" / 628.65mm

Strings

6

Frets

24 (modified from original 22)

Joint

Set (Tenon)

Body

Hollow-body w/ carved top & back

Radius

12" / 304.8mm

Neck Pitch

3.15°

Headstock Pitch

13°

Neck Profile

C
