Description

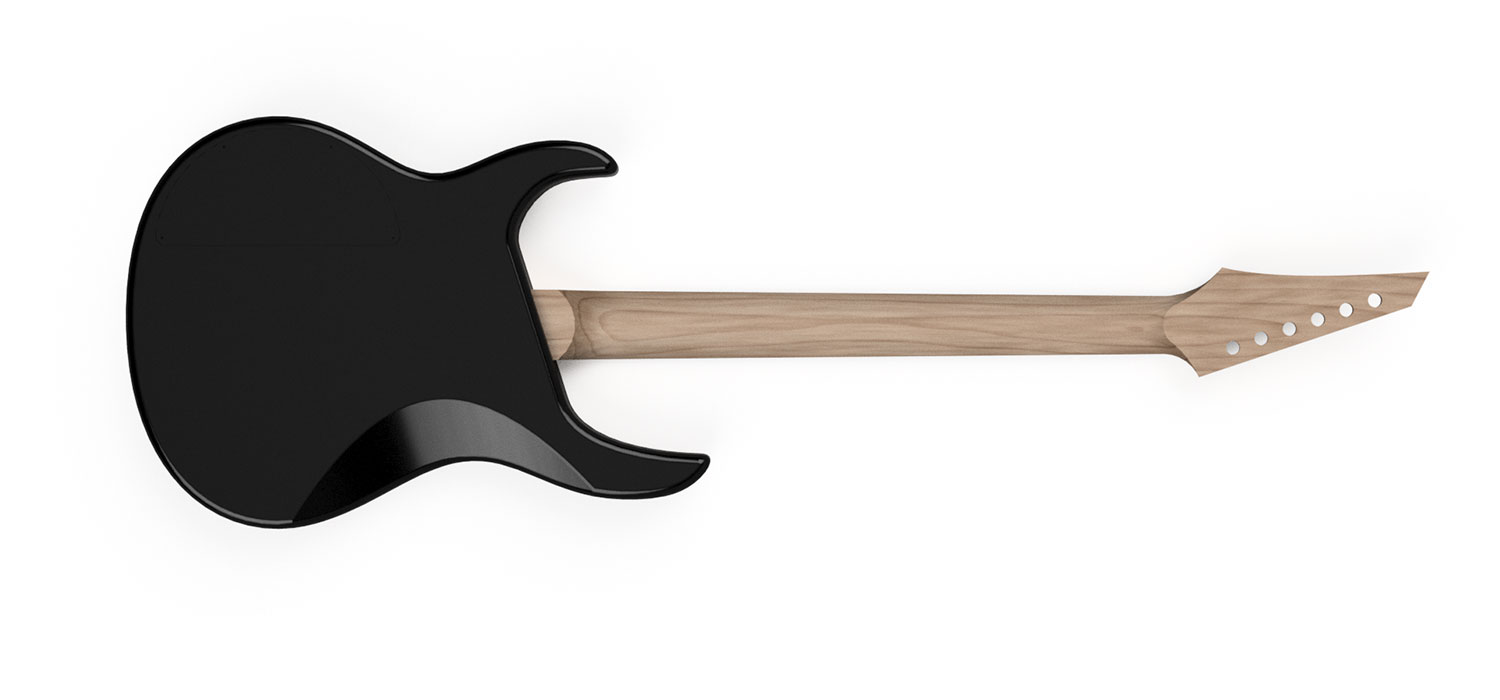

Accurate Guitar Model for CNC
Original model
Features
- Properly labelled & organized work
- Original design, parametric features enabled (F3D)
- 2D sketches included (F3D file)
- Suitable formats for CNC (F3D, STEP, IGES)
- Suitable mesh format for 3D printing (STL)
Available Filetypes
- F3D (Fusion 360 native)
- STEP (vendor neutral)
- IGES (vendor neutral)
- STL (vendor neutral)
Model Notes:
The following drill dimensions are used:

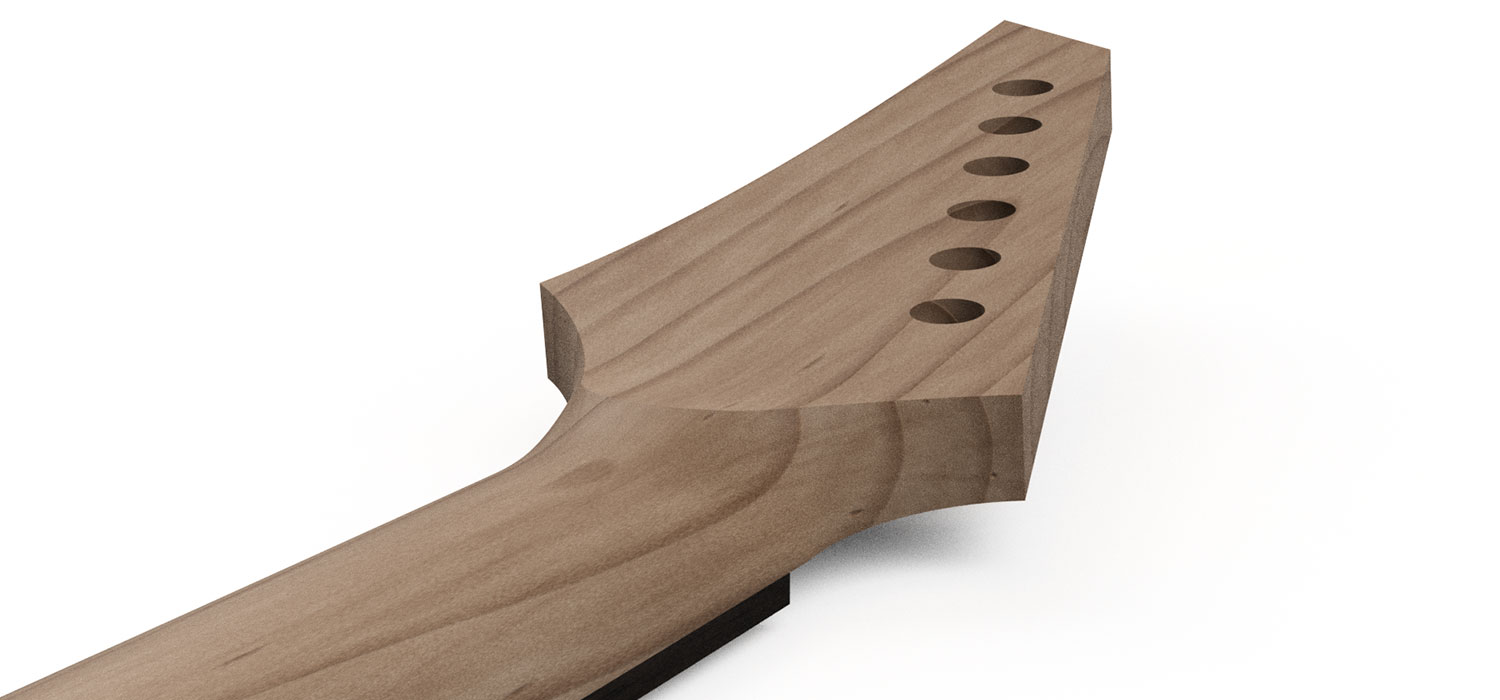

- Tuning machines: 0.394″ / 10mm Ø
- Cavity Cover Screws: 0.079″ / 2mm Ø
This model set includes blank variant parts for the fretboard and neck. Work history and parametric features allow for adjustments of specifications. Parameters allow for easy switch to multi-scale and compound fretboard radius.
This model does not include the following (allowing for user preference / variable hardware):
- CAM toolpaths
