CAD Guitar Model – JTB-III

$50.00

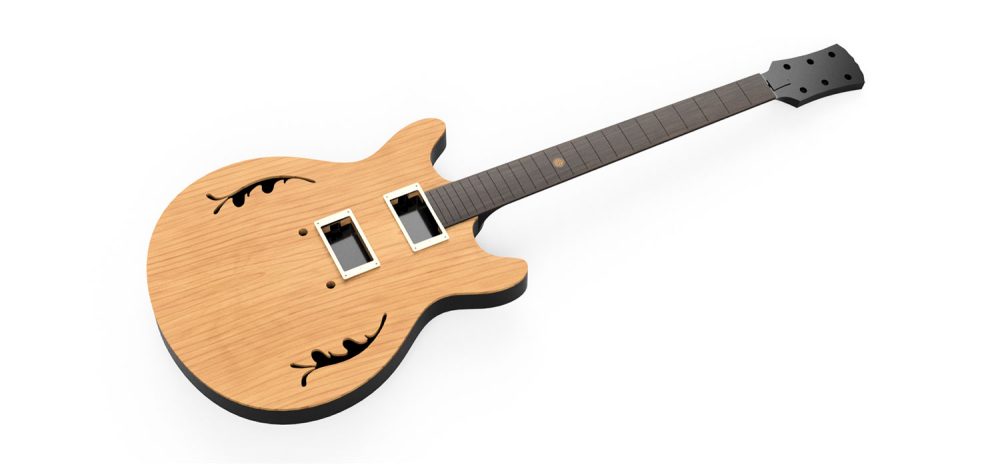

Designed specifically for 3-axis CNC machining. Models come in assembly files complete with all standard individual parts & listed variable parts. Ready for CAM toolpaths.

Specifications:

  • 24.75″ scale (fret divisor = 17.817)
  • 24 frets (0.055″ tang/slot depth)
  • 11.5″ radius fretboard

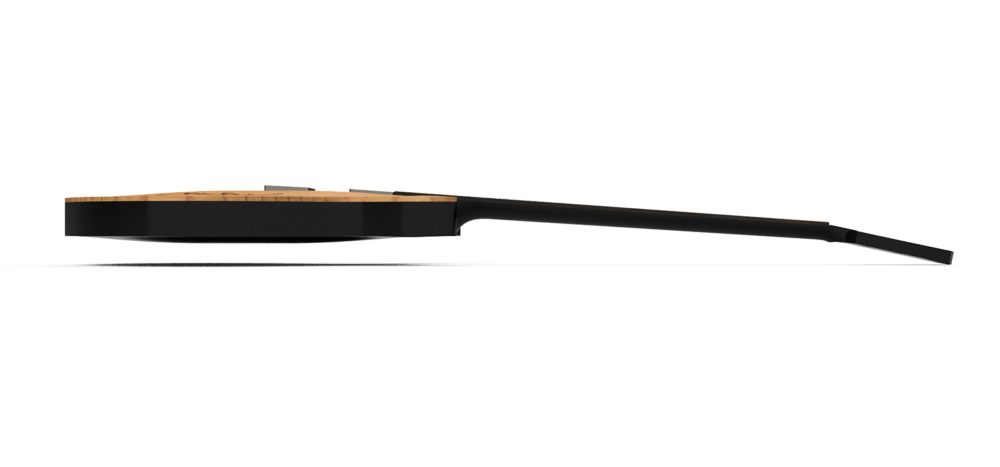

  • 4° neck pitch
  • 8° headstock pitch
  • C neck profile shape

See product notes below for further information!

SKU: MDL-018 Category:
Share:

Description

Accurate Guitar Model for CNC

Original model

Features

  • Properly labelled & organized work

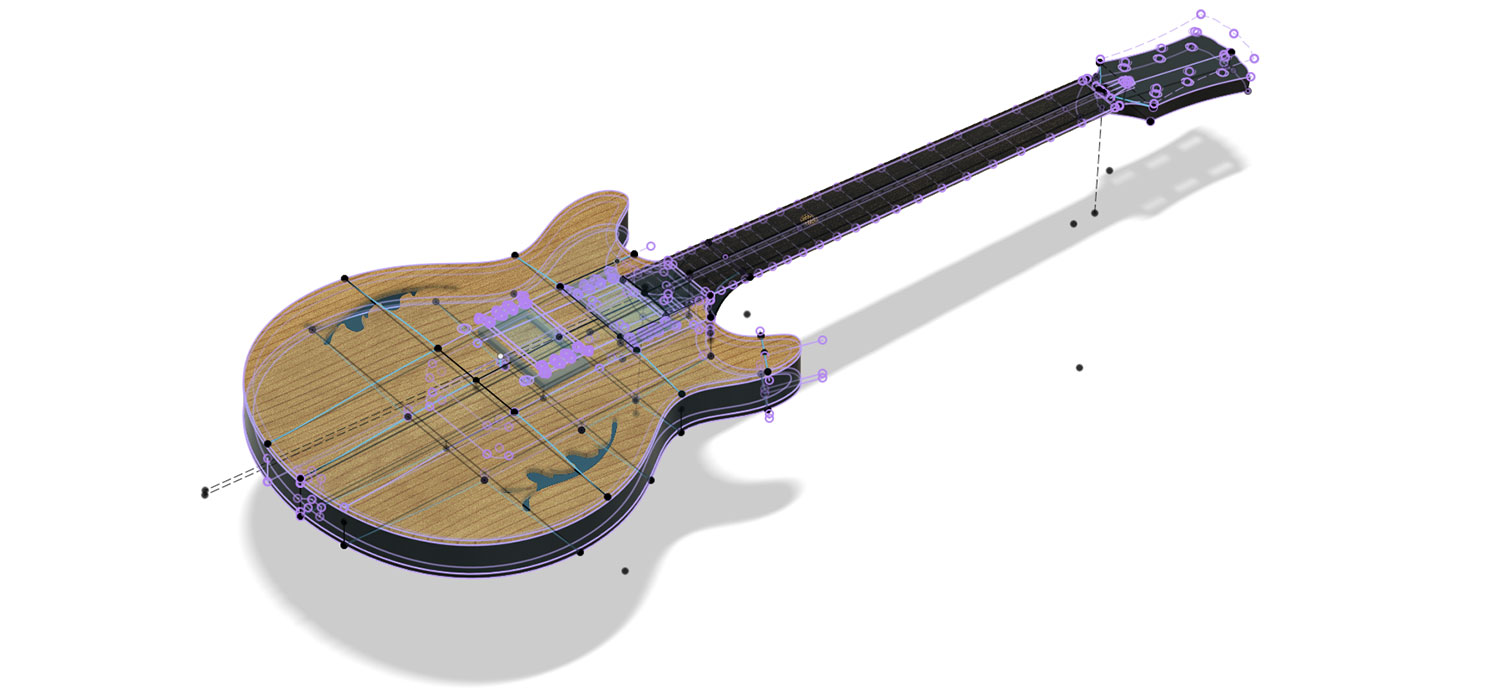

  • Original design, parametric features enabled (F3D)
  • 2D sketches included (F3D file)
  • Suitable formats for CNC (F3D, STEP, IGES)
  • Suitable mesh format for 3D printing (STL)

Available Filetypes

  • F3D (Fusion 360 native)
  • STEP (vendor neutral)
  • IGES (vendor neutral)
  • STL (vendor neutral)
Model Notes:

The following drill dimensions are used:

  • Tuning machines: 0.394″ / 10mm Ø
  • Cavity Cover Screws: 0.4375″ (7/16″) / 11.11mm Ø



This model set includes alternate parts for the fretboard, neck, and body components. Work history and parametric features allow for adjustments of specifications.



This model does not include the following (allowing for user preference / variable hardware):

  • CAM toolpaths

Additional information

Scale

24.75” / 628.65mm

Strings

6

Frets

24

Joint

Set (Tenon)

Body Depth

2.25” / 57.15mm (Overall)

Radius

11.5” / 292.1mm

Neck Profile Shape

C

Width @ Nut

1.693” / 43mm

Width @ F12

2.061” / 52.35mm

Depth @ F1

0.827” / 21mm

Depth @ F12

0.925” / 23.5mm

Neck Pitch

4°

Headstock Pitch

8°

Bridge

TOM (3.25" post spacing – specifically designed for Hipshot Babygrand)

Pickup Options

H-H
