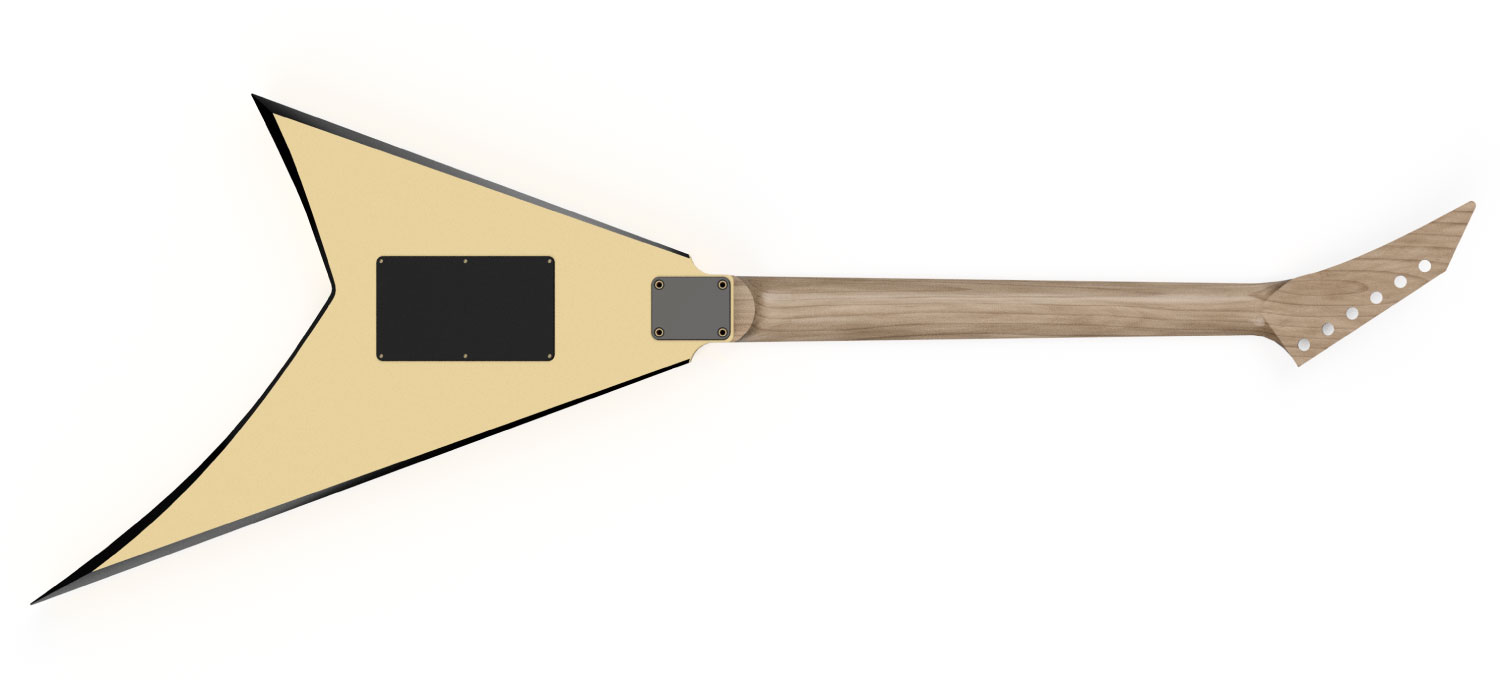

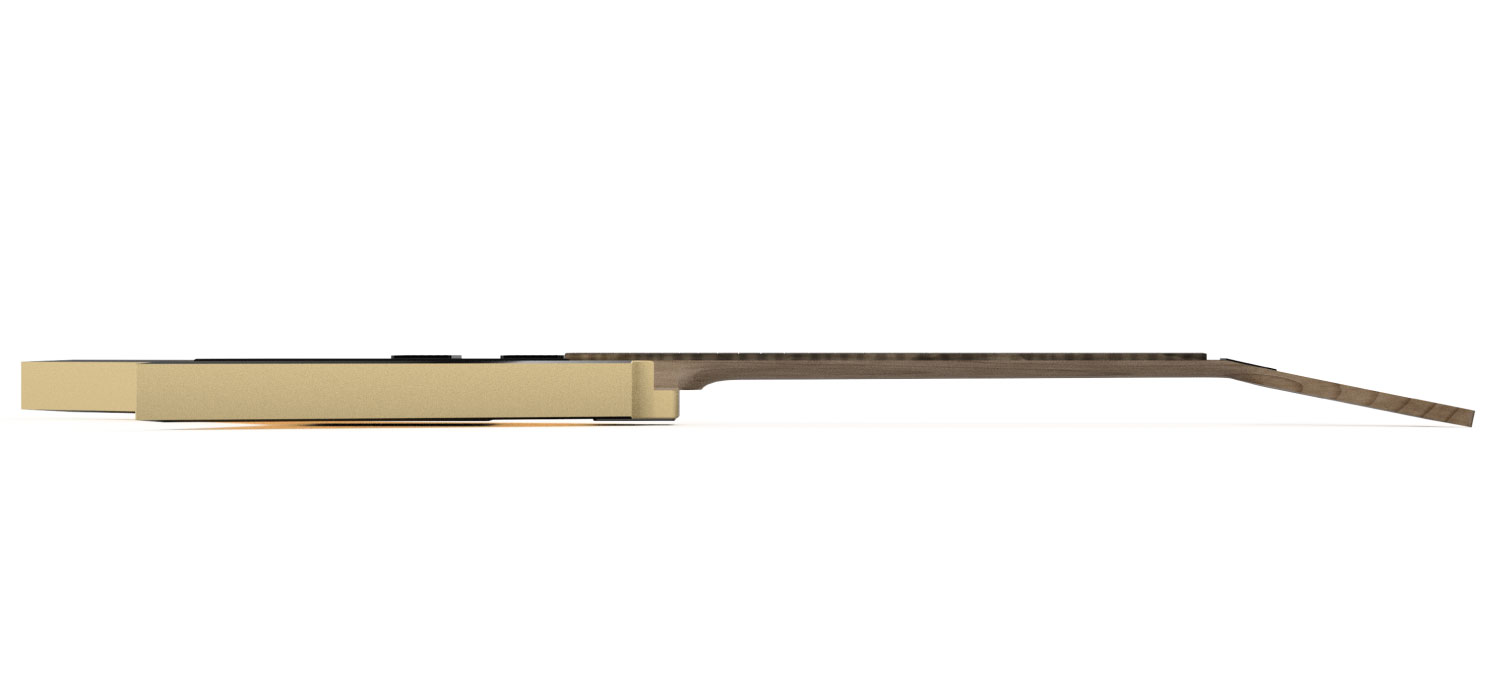

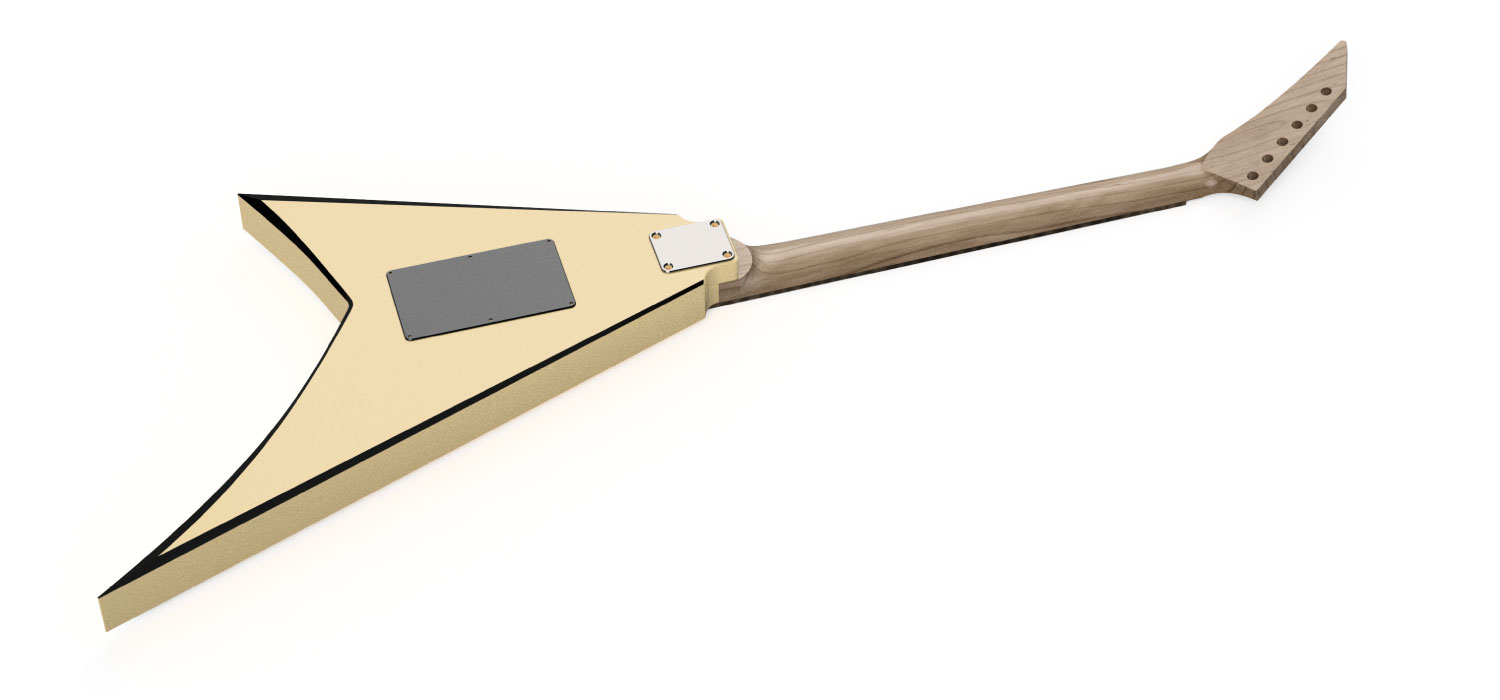

3D Guitar Model – Jackson Rhoads V JS32

$50.00

Designed specifically for 3-axis CNC machining. Models come complete with textures. Ready for CAM toolpaths.

Specifications:

  • 25.5″ scale
  • 24 frets (Stewmac wide/highest)
  • 12″ – 16″ compound fretboard radius / 12° headstock pitch
  • Bolt-on + tongue design
  • Complete Floyd Rose routes

See product notes below for further information!

SKU: MDL-004 Category:
Share:

Description

Accurate Guitar Model for CNC

Based on a 2013 Jackson JS32 Rhoads V.

Features

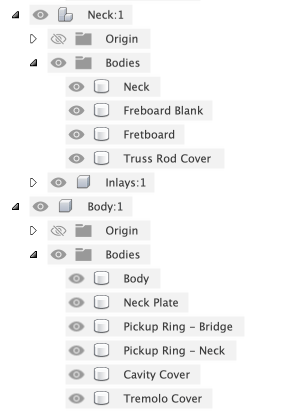

  • Properly labelled & organized work
  • Faithful, accurate designs

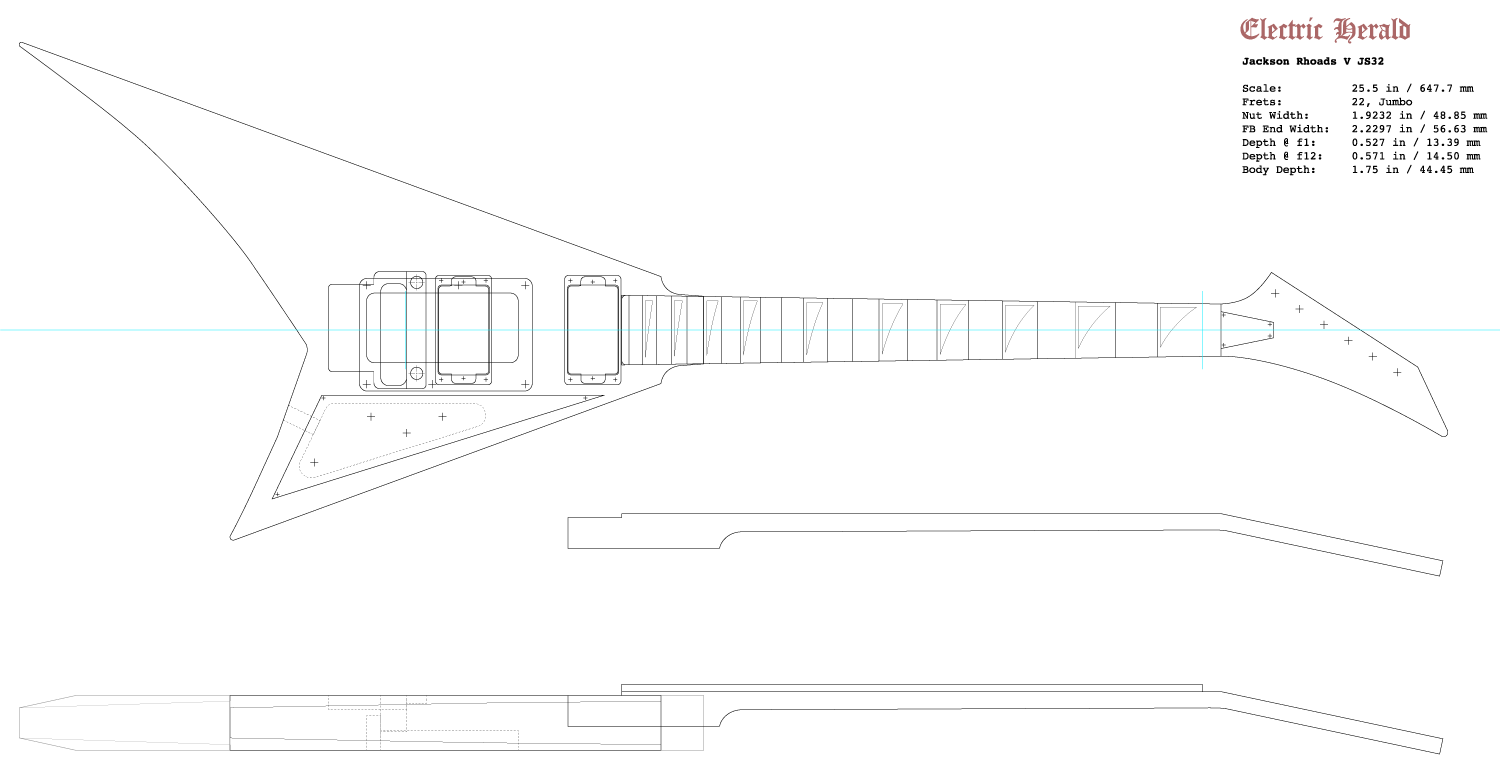

  • 2D sketches included
  • All suitable formats for CNC (F3D, STEP, IGES)

Available Filetypes

  • F3D (Fusion 360 native)
  • STEP (vendor neutral)
  • IGES (vendor neutral)
Model Notes:

The following drill dimensions are used:

  • Tuning machines: 10mm Ø | Controls: 8mm Ø | Panels: 2mm Ø



This model does not include the following (allowing for user preference / variable hardware):

  • Truss rod slot (location sketch included)
  • Output jack (location sketch included)
  • Bridge posts (location sketch included)
  • Jackson-style inlays (sketch included)
  • CAM toolpaths

* Neck pocket & panel recess offsets may be made in the modeling environment or with CAM processes. Offset size recommendations begin at .015″ to .02″ for neck pockets and .02″ to .04″ for panel recesses.

Download the DXF / PDF / Vector templates here!
