Guitar DXF – Dean ML (Custom)

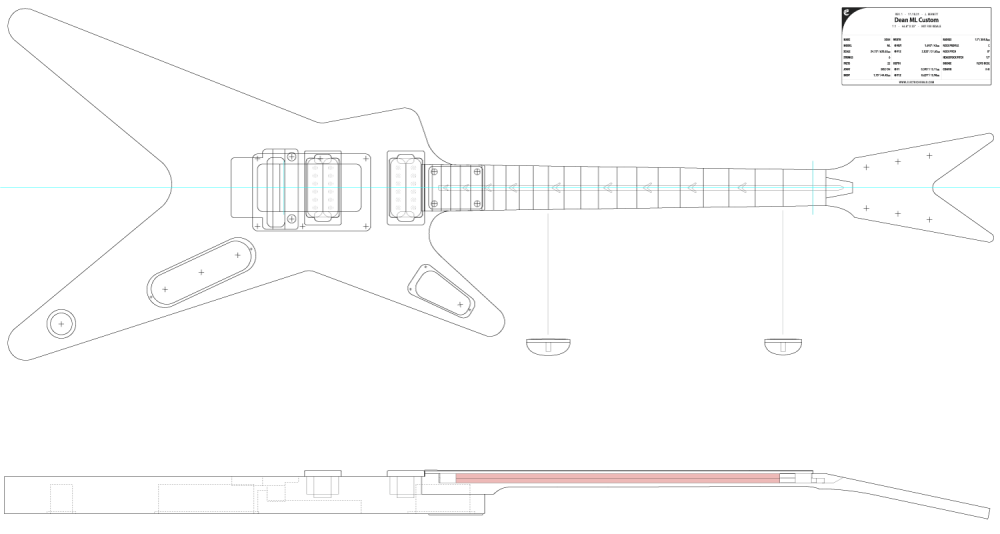

Full-Scale Digital Blueprints

Based on a Dean ML model (Floyd Rose, bolt-on)

Features

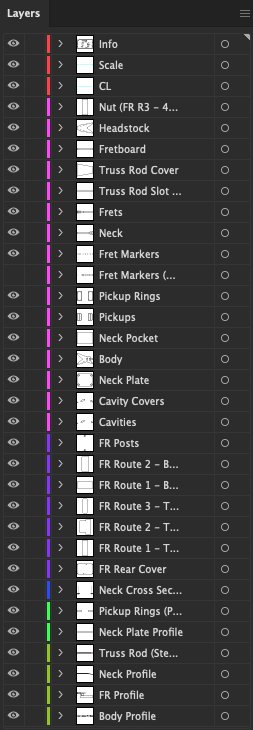

• Layered and labelled work (DXF, AI)
• Faithful, accurate designs
• Scale lines & center lines
• Additional templates for separated parts
• Formats for all applications (CAD/CAM, print, design)

Available Filetypes

• DXF (CAD Interchange)
• PDF
• Adobe Illustrator (Vector)
