CAD Guitar Model – Dean ML (Custom)

$50.00

Designed specifically for 3-axis CNC machining. Models come in assembly files complete with all standard individual parts & listed variable parts. Ready for CAM toolpaths.

Specifications:

  • 24.75″ scale
  • 22 frets (StewMac Medium/High – .073″ tang/slot depth)
  • 12″ radius fretboard
  • 0° neck pitch (suitable for Floyd Rose)
  • C neck profile shape (modified from soft-V shape)
  • 12° headstock pitch

See product notes below for further information!

SKU: MDL-011 Category:
Share:

Description

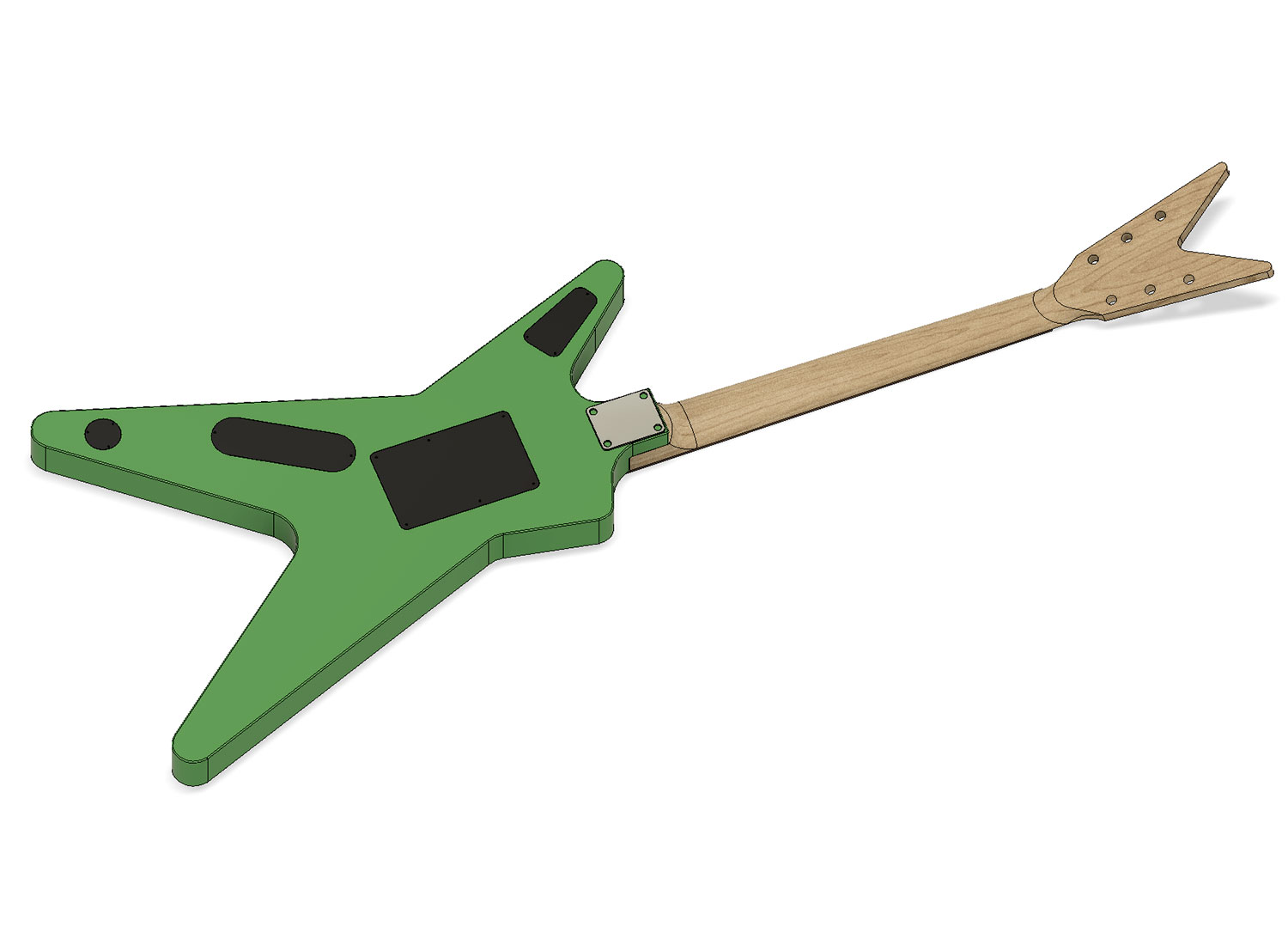

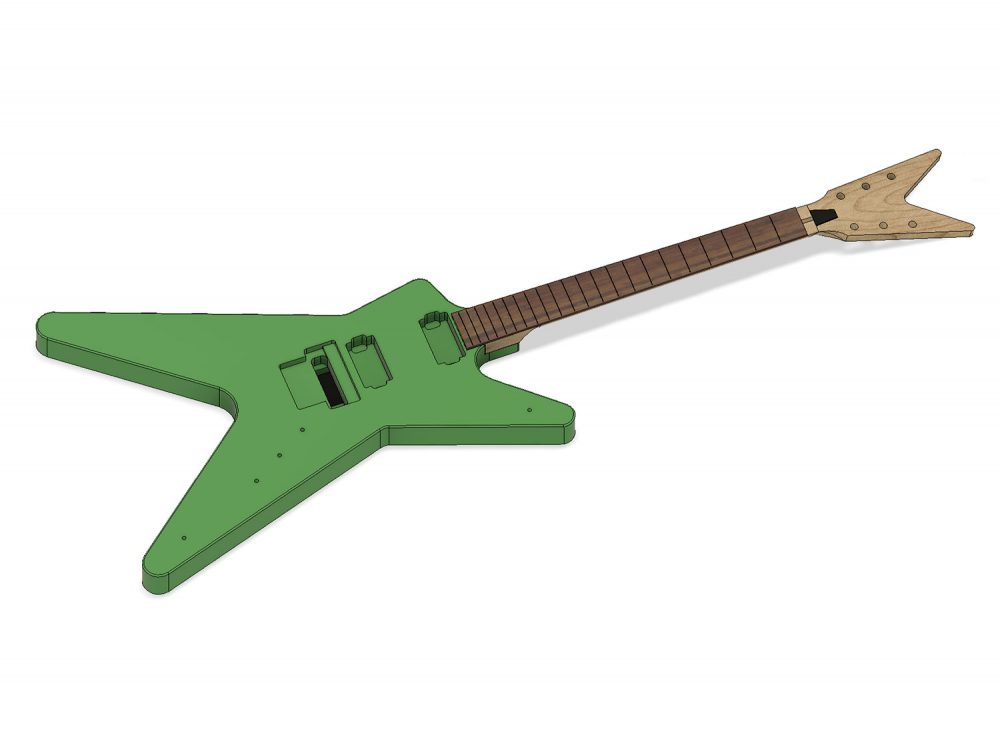

Accurate Guitar Model for CNC

Based on a 2014 Dean ML (modified bolt-on neck pocket)

Features

  • Properly labelled & organized work

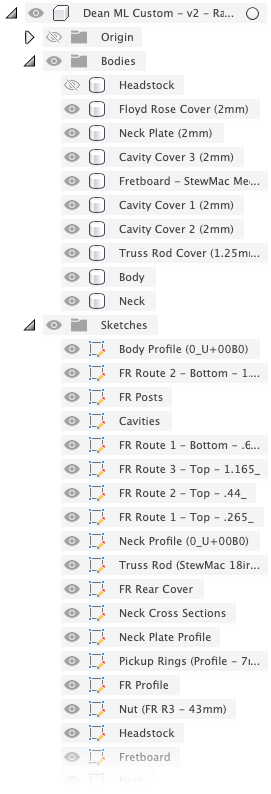

  • Faithful, accurate designs
  • 2D sketches included (F3D file)
  • Suitable formats for CNC (F3D, STEP, IGES)

Available Filetypes

  • F3D (Fusion 360 native)
  • STEP (vendor neutral)
  • IGES (vendor neutral)
Model Notes:

The following drill dimensions are used:

  • Tuning machines: 10mm Ø | Panels: ~2mm Ø (5/64th – #5)



This model does not include the following (allowing for user preference / variable hardware):

  • CAM toolpaths

* Neck pocket recess and control plate offsets are .01″.
* This model is modified from a set-neck to a squared bolt-on pocket (fits standard 2 x 2.5″ Fender neck plates).

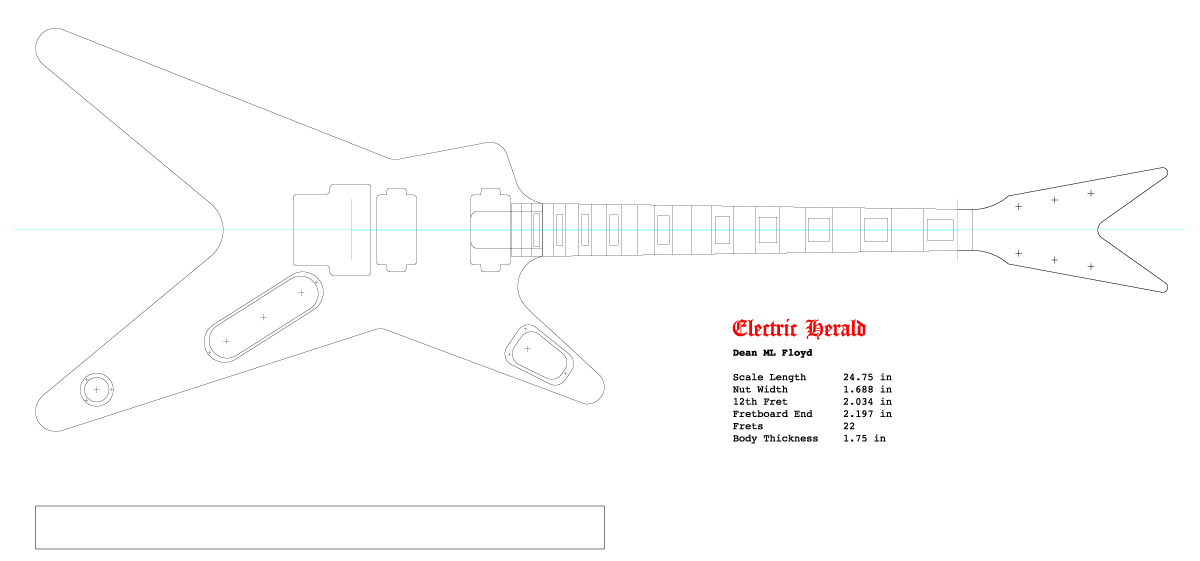

Download the DXF / PDF / Vector templates here!
